VIRUS XC2

11/09/2015

Paramotor - Weldless technology


This paramotor is digitally designed and produced using CNC and weldless technology by high quality materials only.

Paramotor - Weldless technology


This ensure maximum precision, repeatability and replaceability of all details and parts which makes it easy

to repair and maintain.




Image title

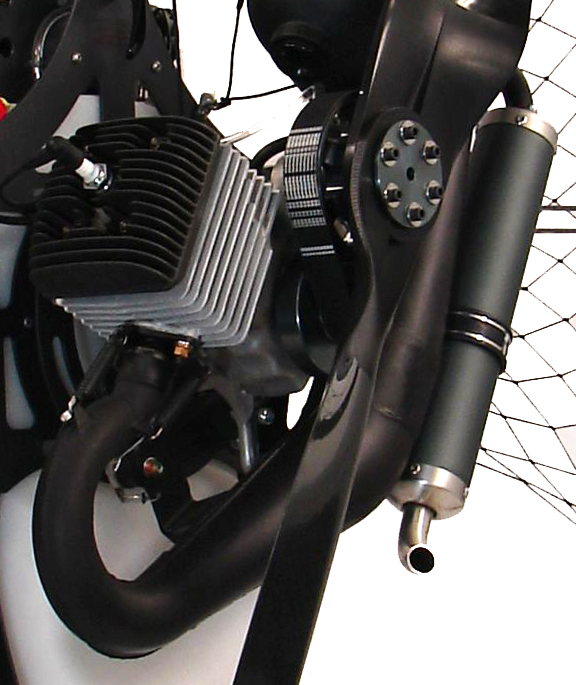

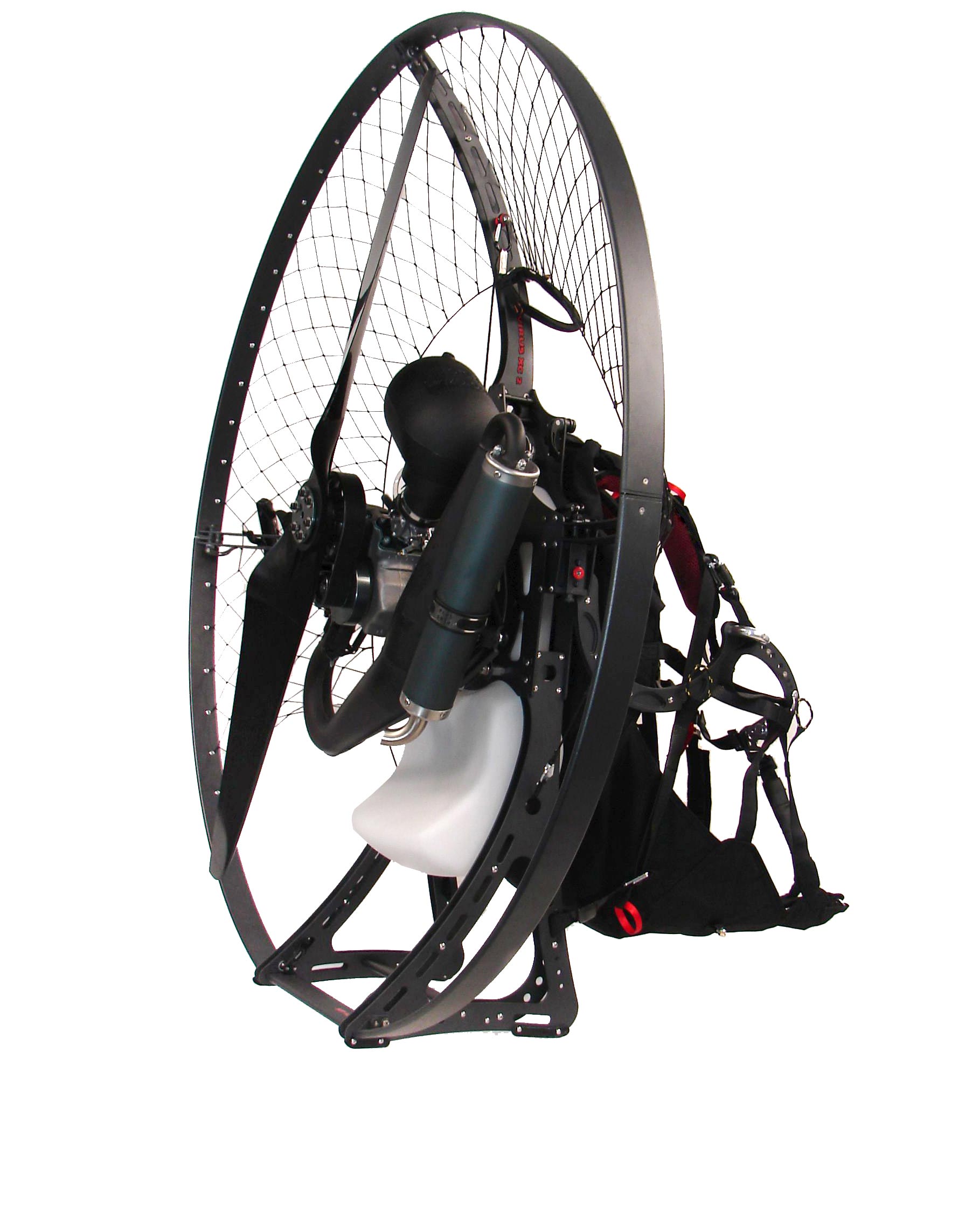

Engine - Vittorazi Moster 185 plus

Displacement - 184.7 cc

Max power - 25hp / 7800rpm

Cooling system - Extractionfrom propeller

Starter - manual pull start 3S

Clutch - CentrifugalParamotor - Engine

Transmission - Direct V-Poly belt drive

Reduction - 1/2.68

Propeller- 125cm 2 blade carbon

Trust - 75kg

Tank - 11l

Paramotor weight - 25kg

(other types of engines are optional)

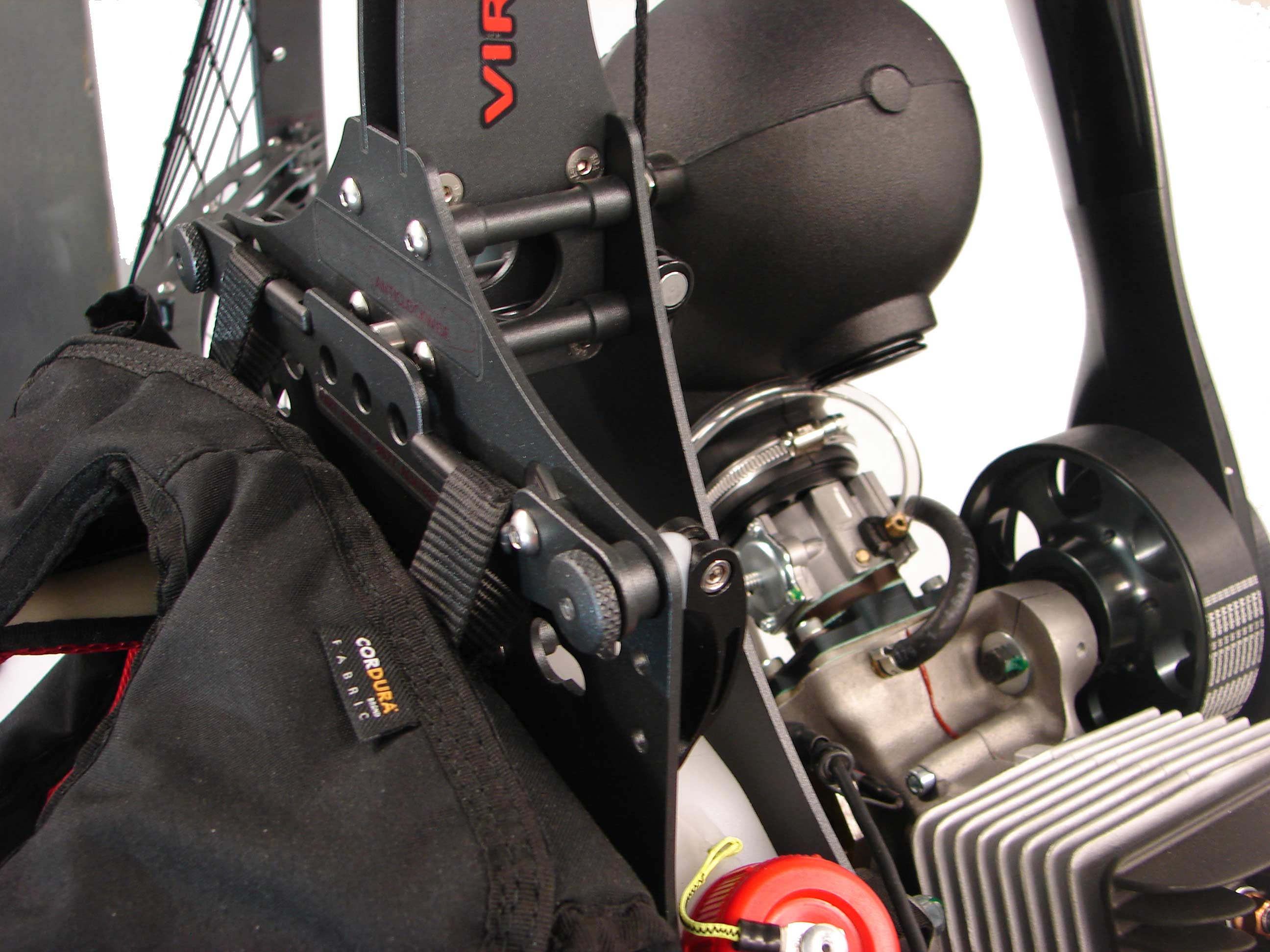

Paramotor - Chassis



Chassis - 3D-construction of CNC laser and waterjet cutted flat elements made of high-grade heat-treated aluminium alloy.



Paramotor - Safety ring

Safety ring - aerodynamic profile of high-grade aluminium alloy detachable to four segments.



Paramotor - Hang pivots

Hang pivots - heat-treated multi-layer aluminium alloy.

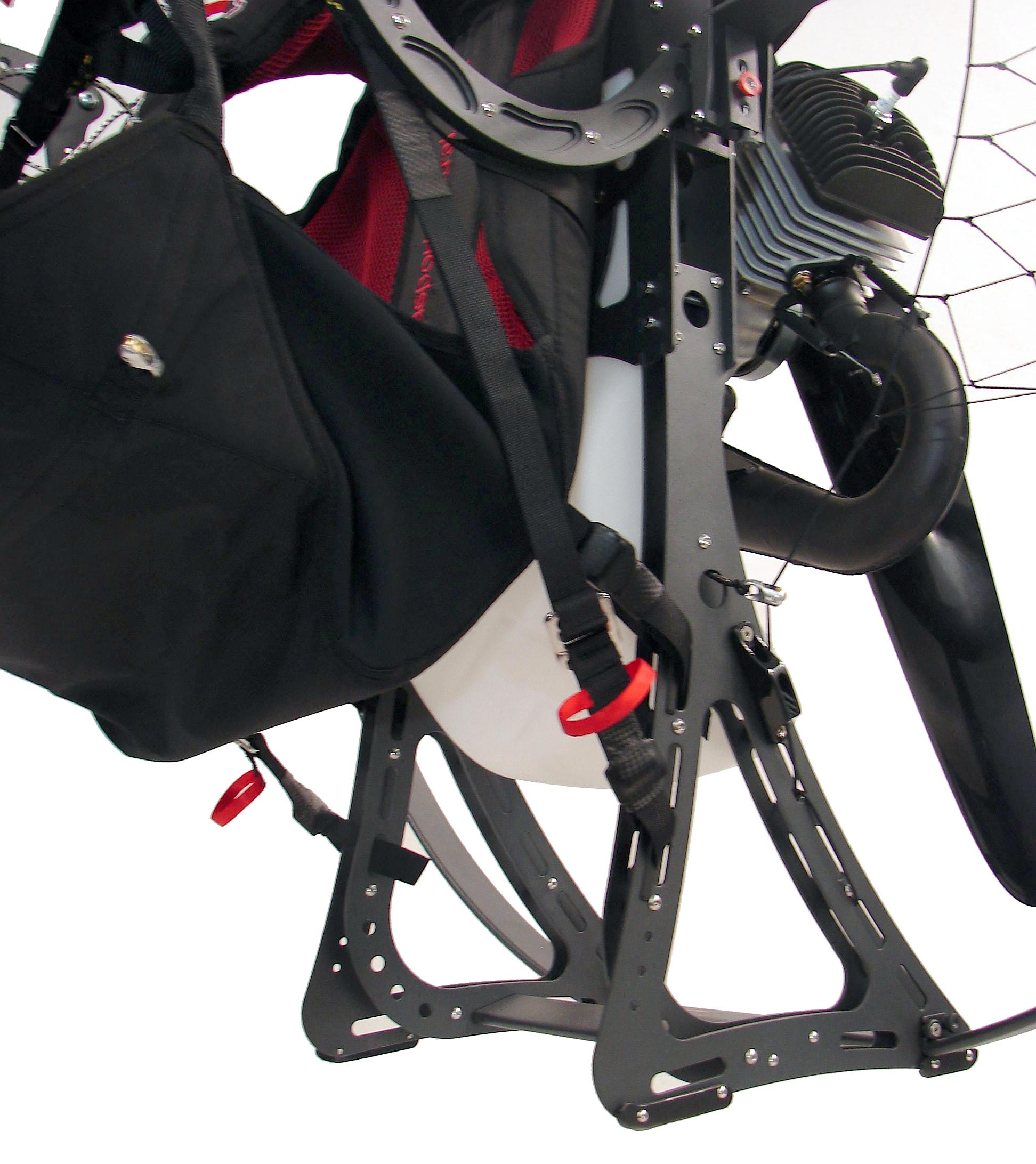

Paramotor - Harness

Harness

- multi-point adjustment

- two-segment seat

- thigh ABS-straps

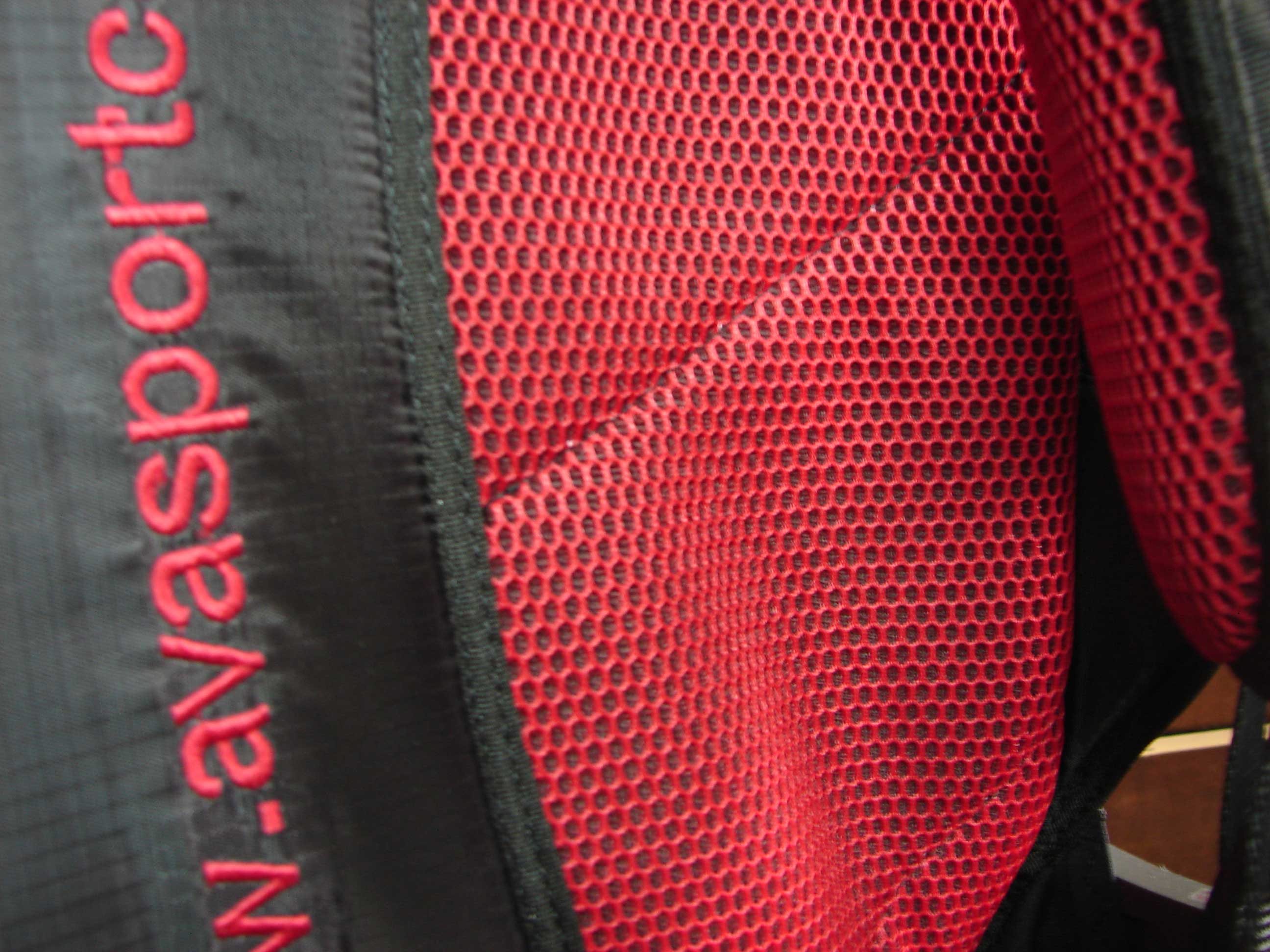

Paramotor - Harness

- additional "lighten" shoulder

- straps attached to the chassis

- ventilated back and shoulder straps

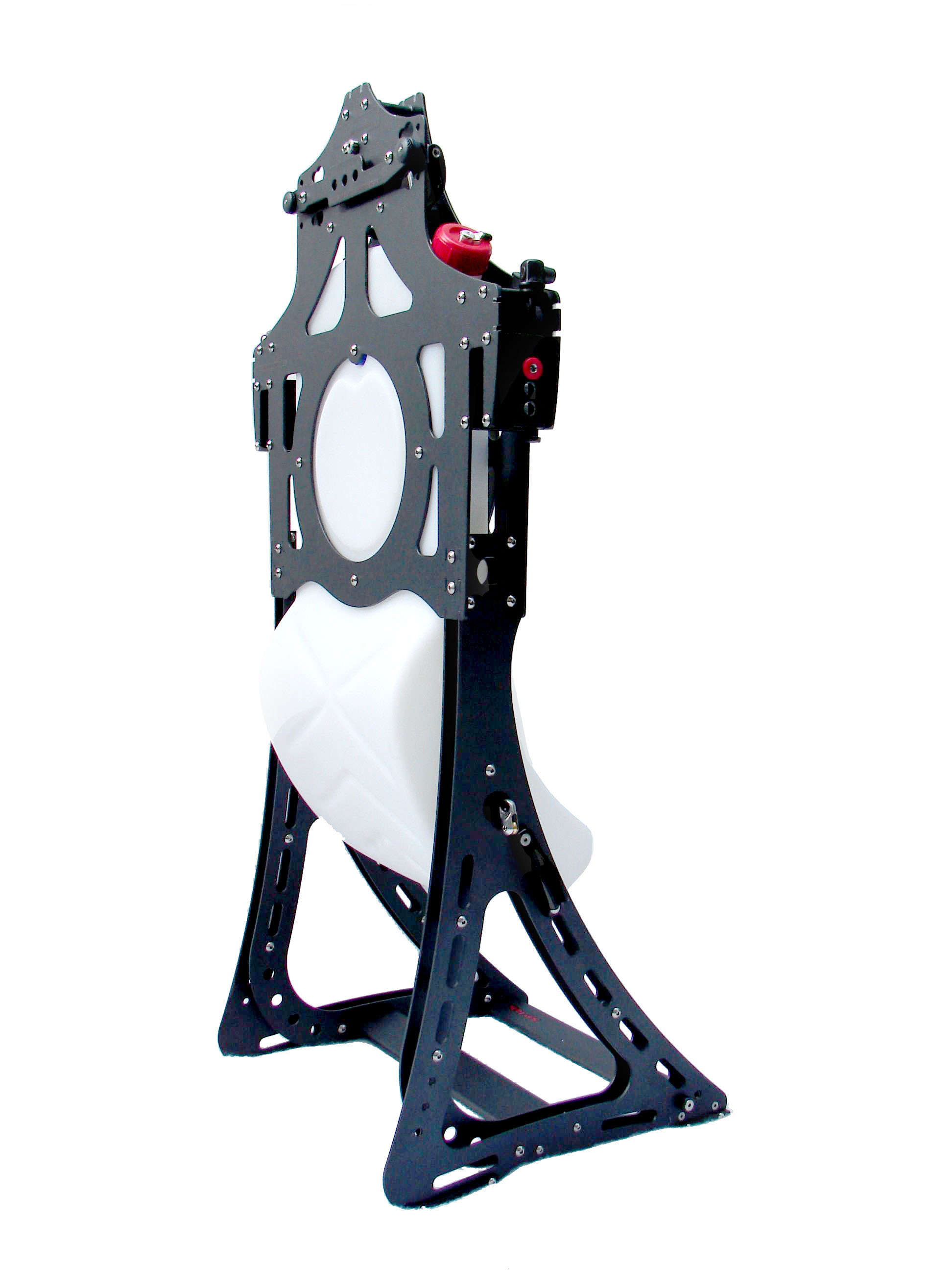

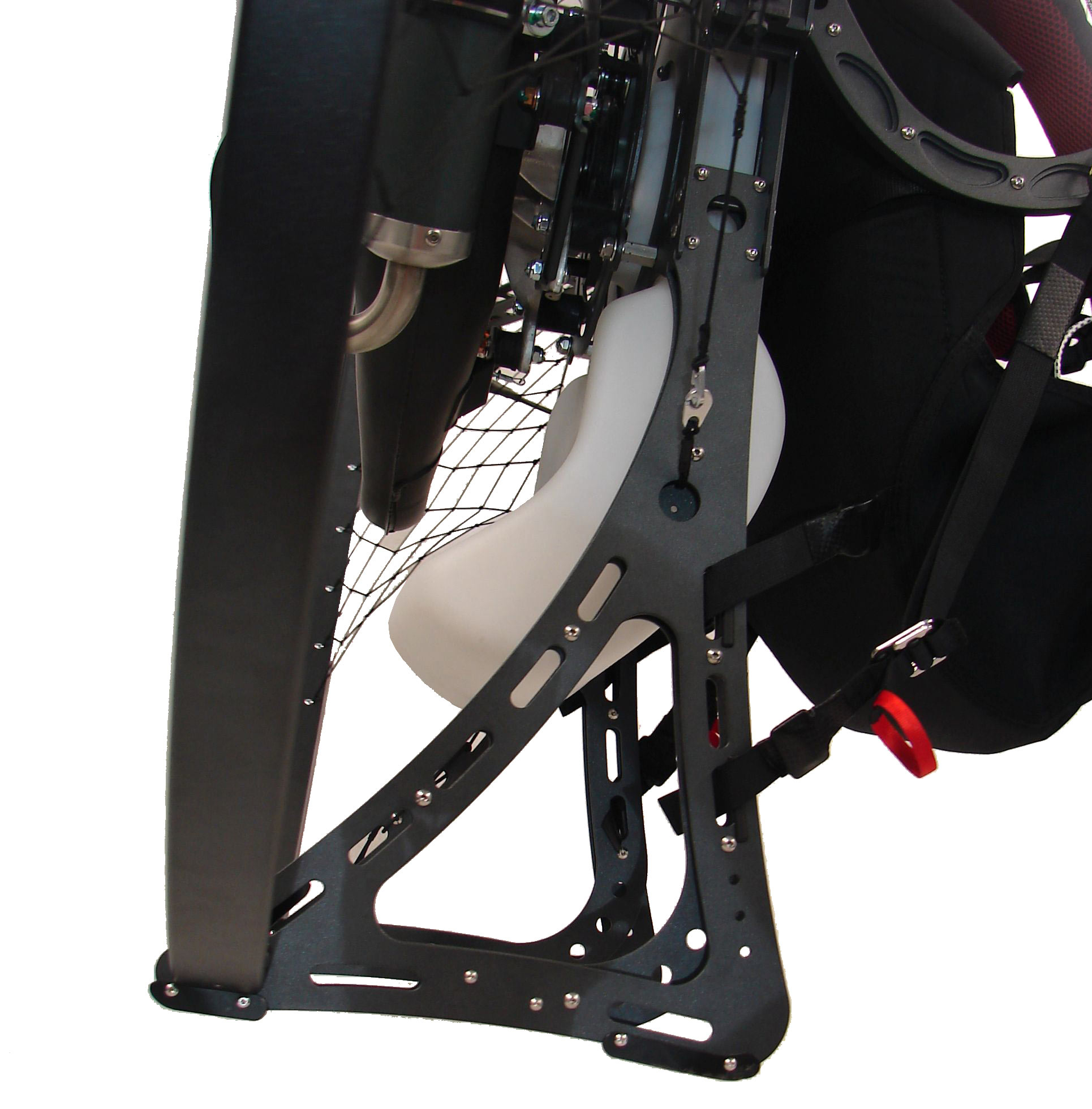

Fuel tank integrated in the main chassis with ergonomic design, working as a lumbar support. Main body of the frame is aerodynamic and high positioned which prevents disturbance of the air-stream under the pilot. Two flow air-stream compensation towards the atmosphere.

Paramotor - Fuel tank

Paramotor - Fuel tank

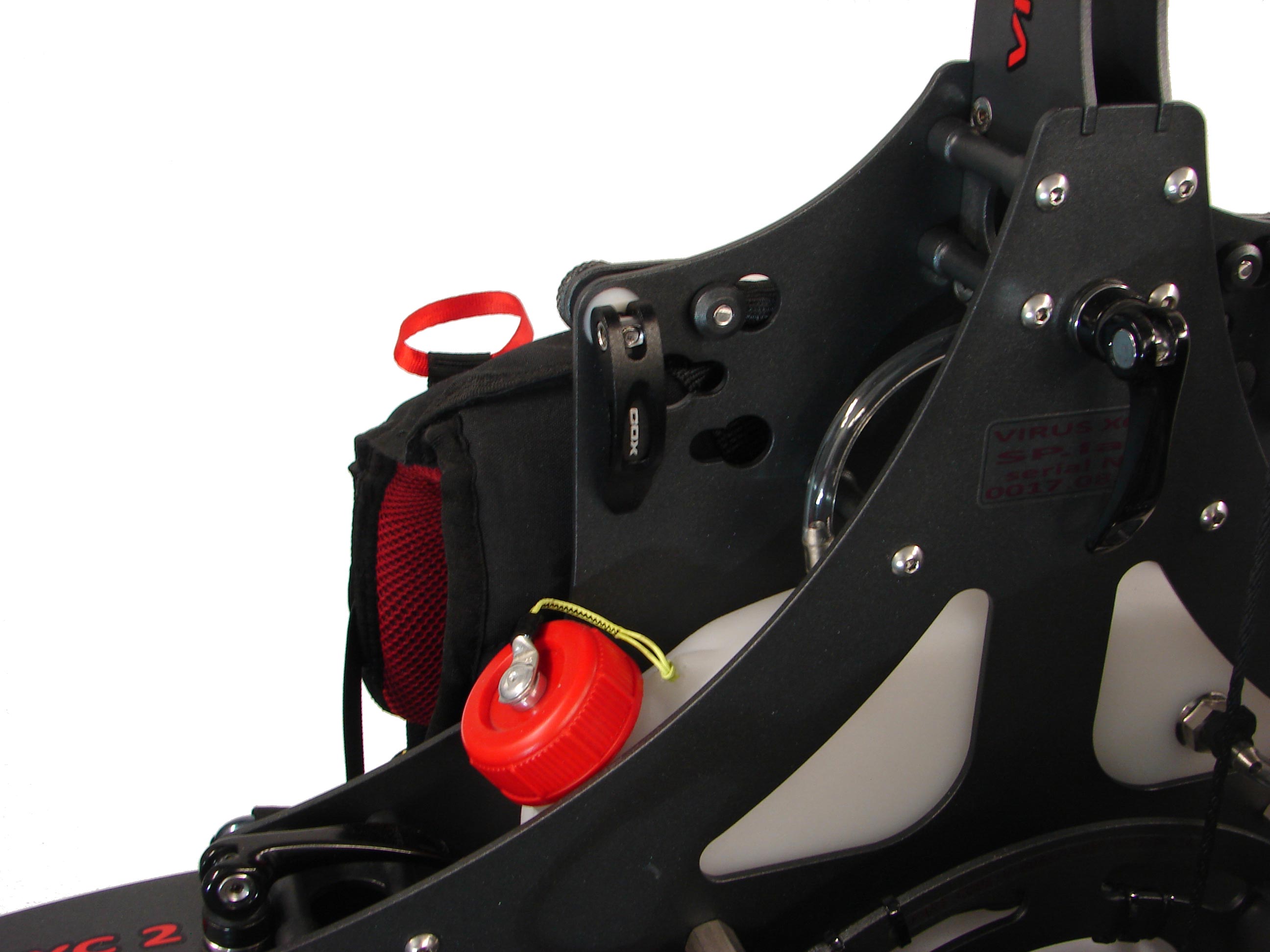

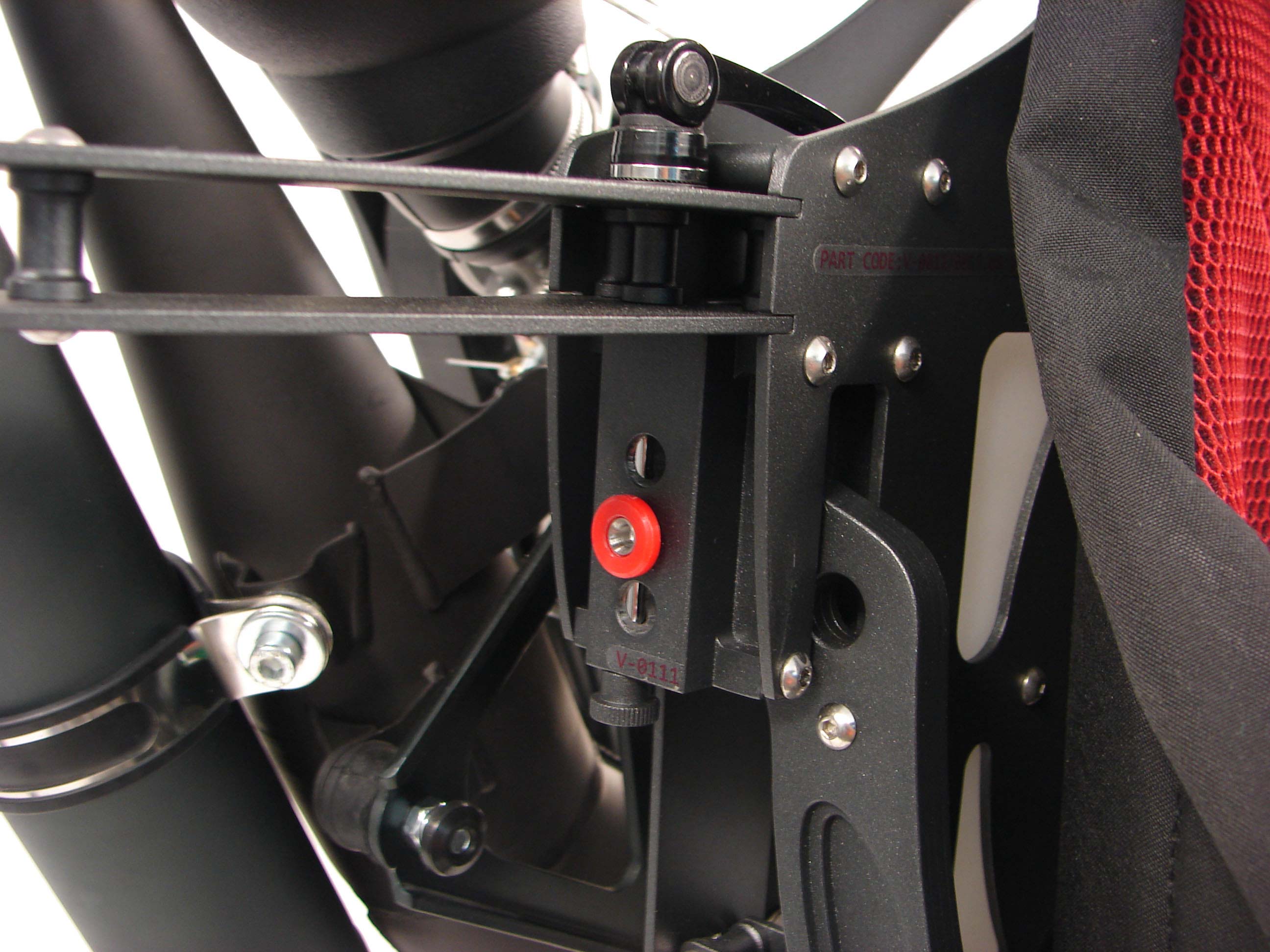

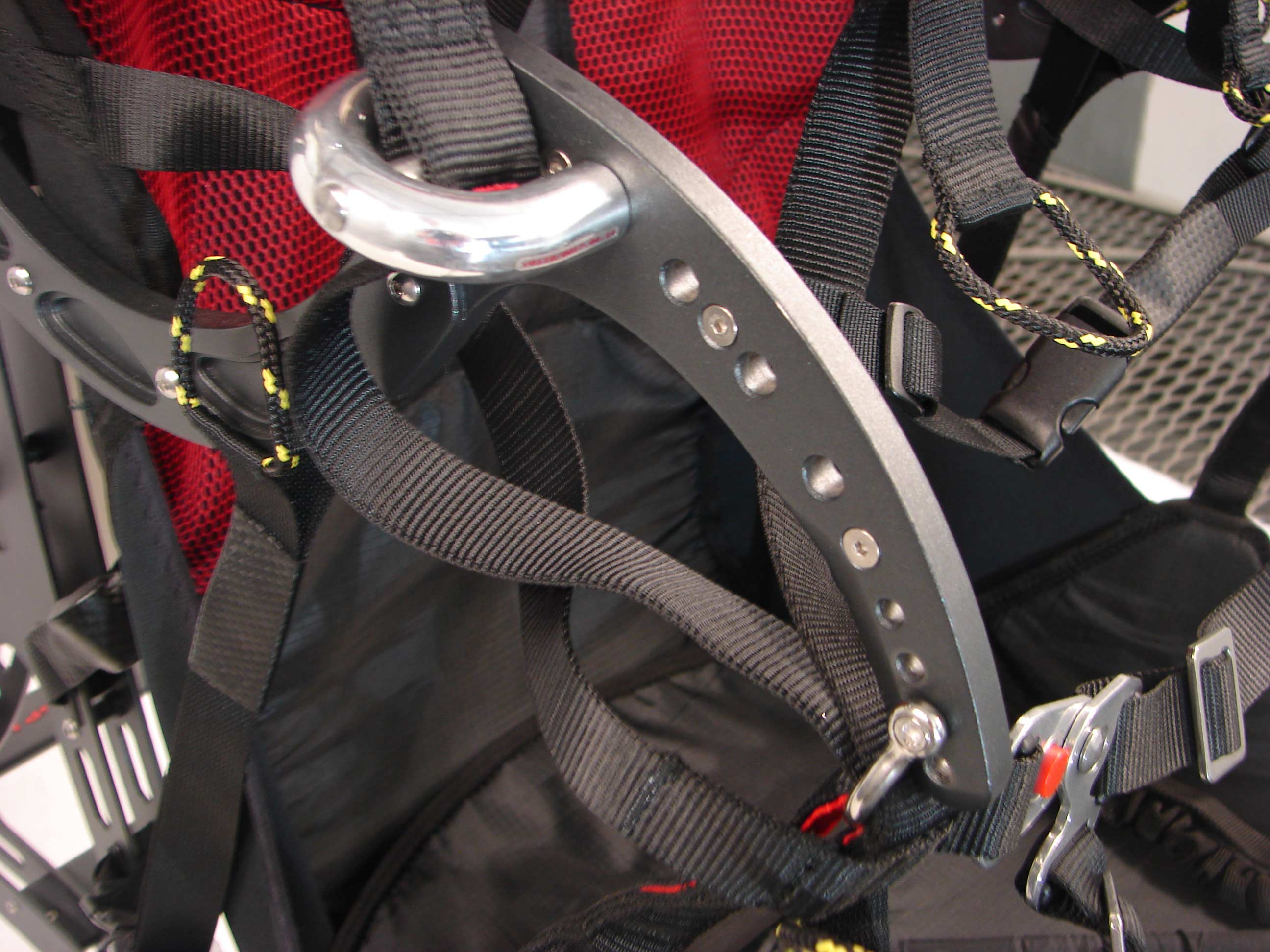

Multi-point adjustment system, allowing maximum comfort, safety and precise compensation of the torque.

Paramotor - Multi-point adjustment system

Paramotor - Multi-point adjustment system

Paramotor - Multi-point adjustment system

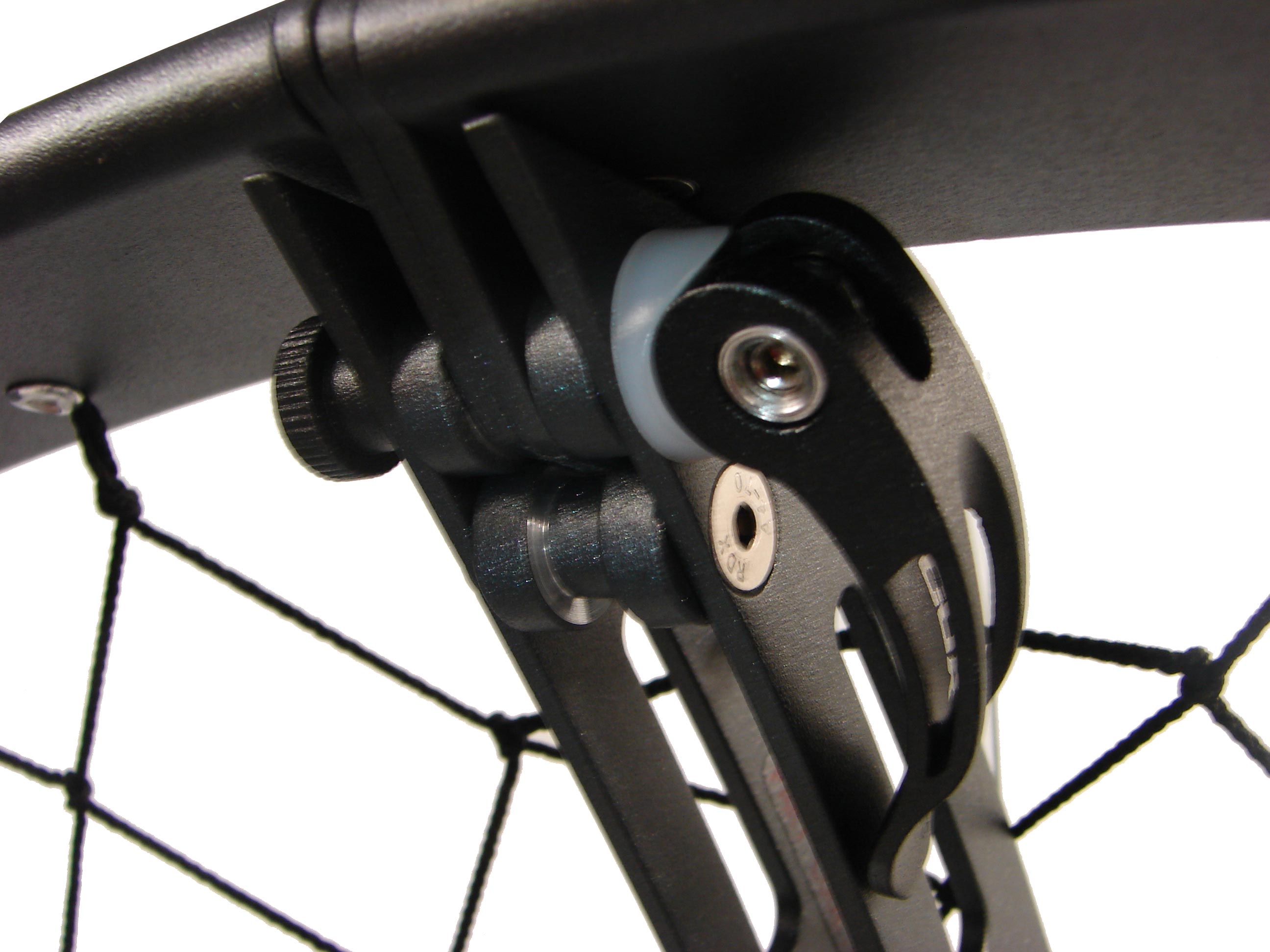

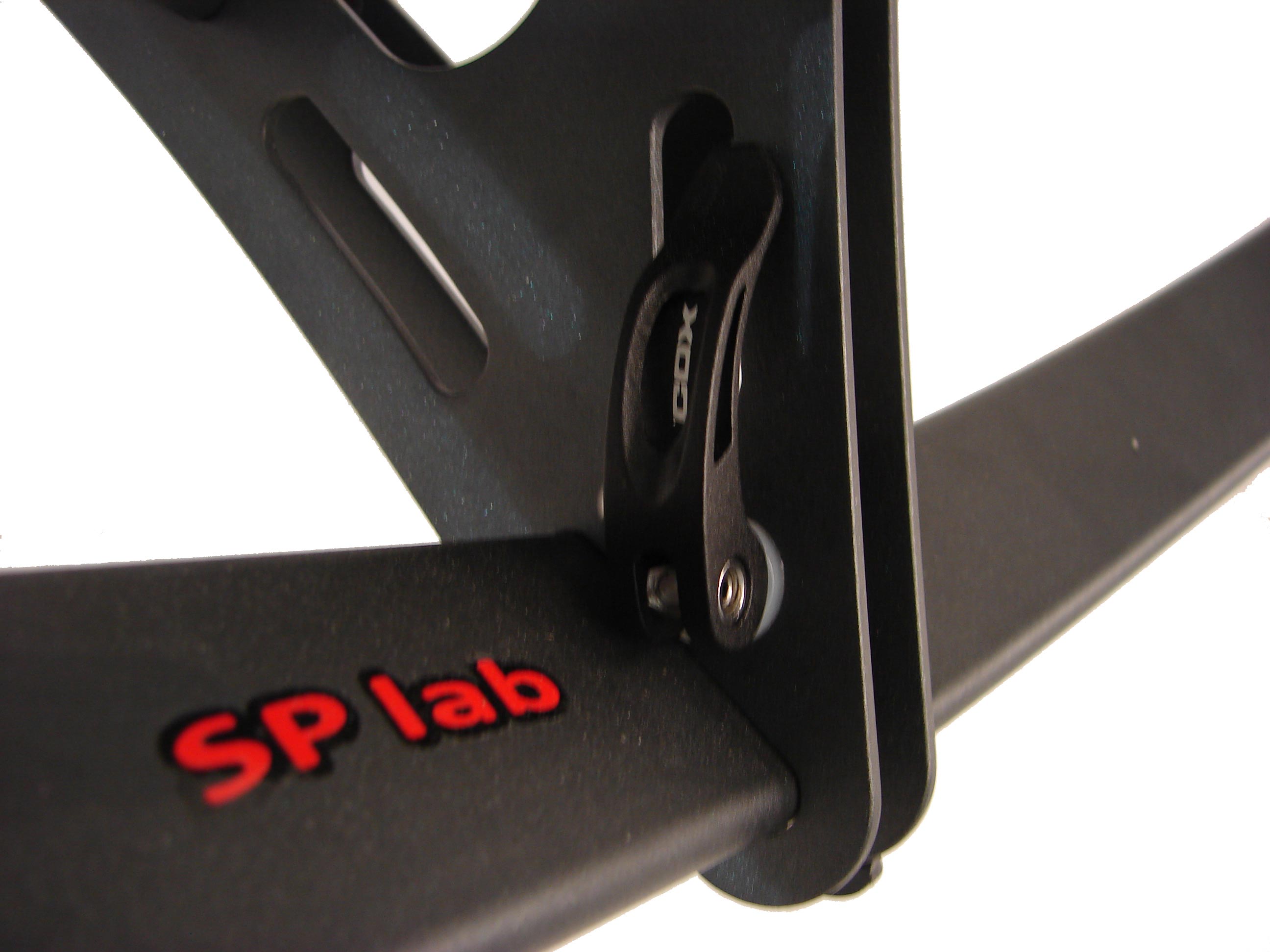

Assembly - reliable and easy-to-use QR-bolts with eccentric lock. Paint and coating - glass-blasted surfaces coated in heat-chamber with high-quality epoxy-polyester powder with ceramic parts.

Paramotor - Assembly

Paramotor - Assembly

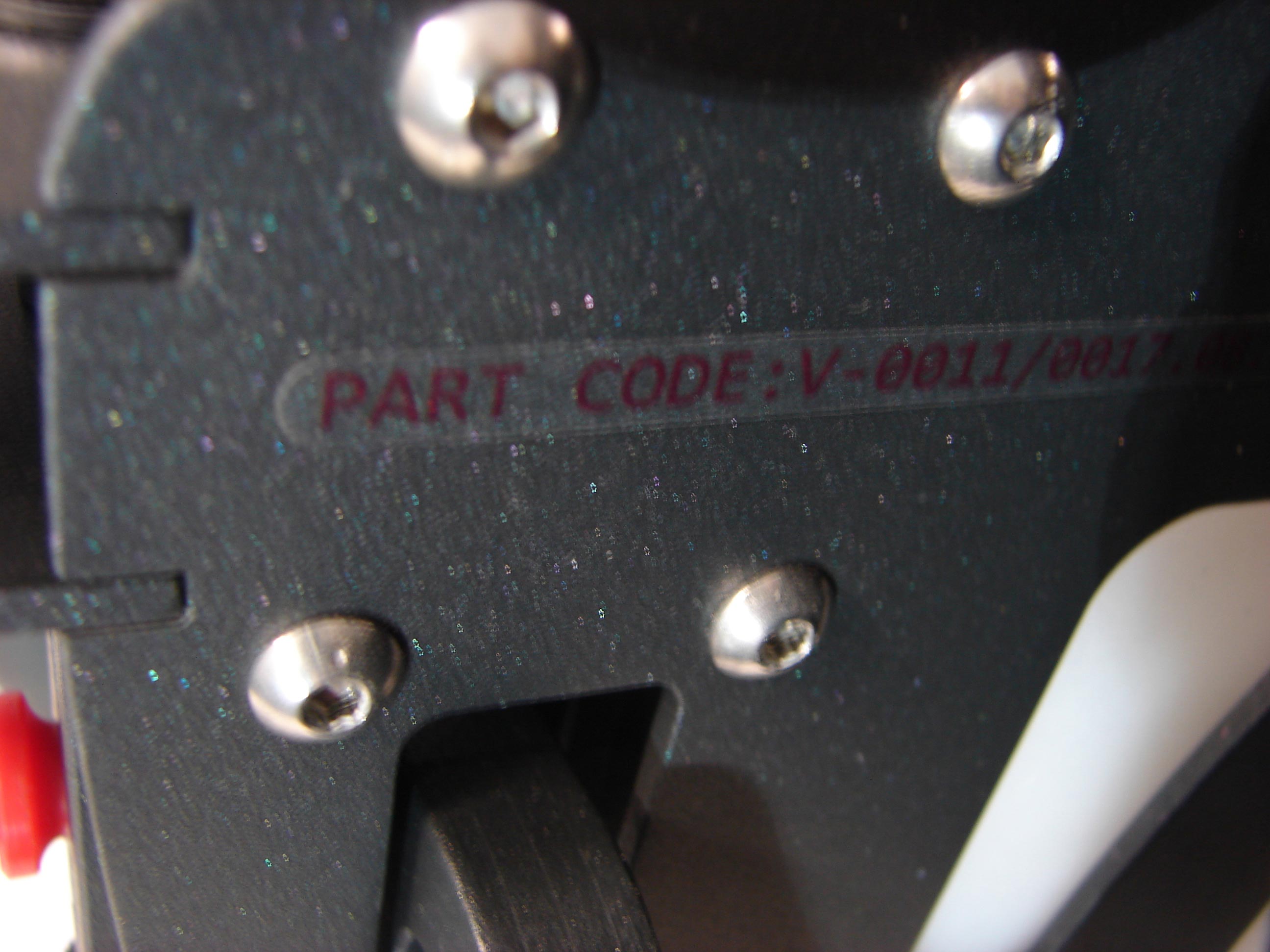

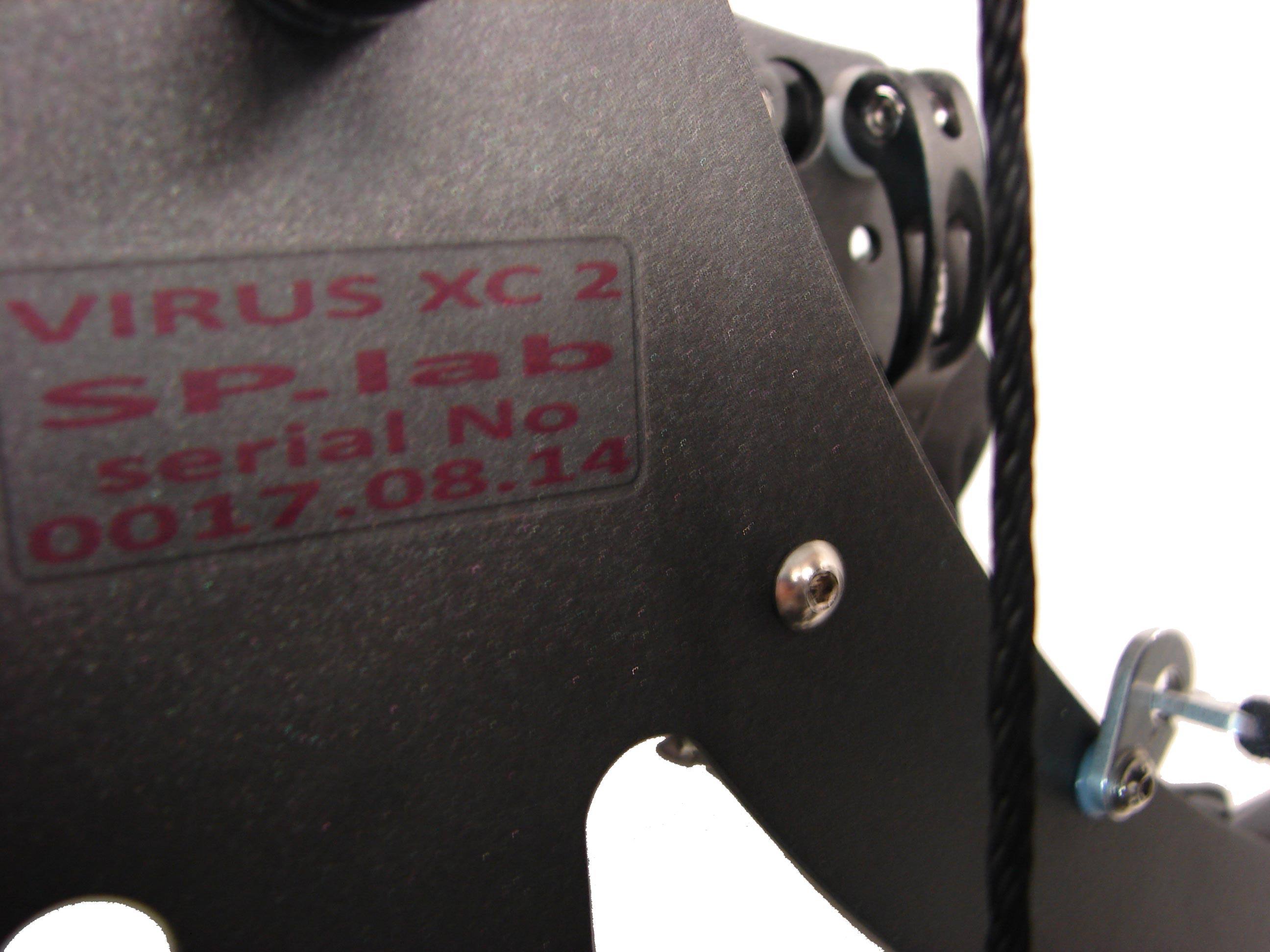

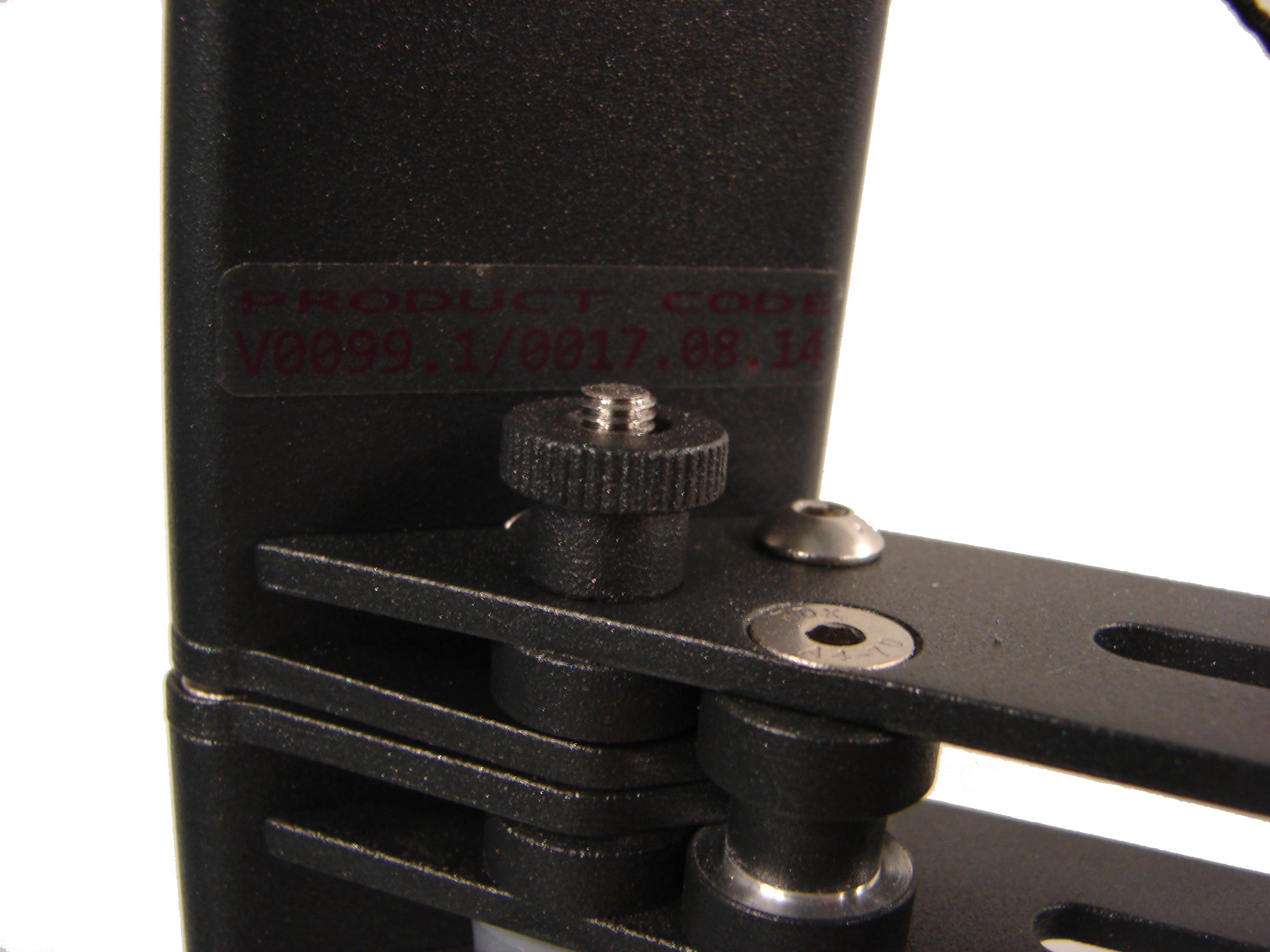

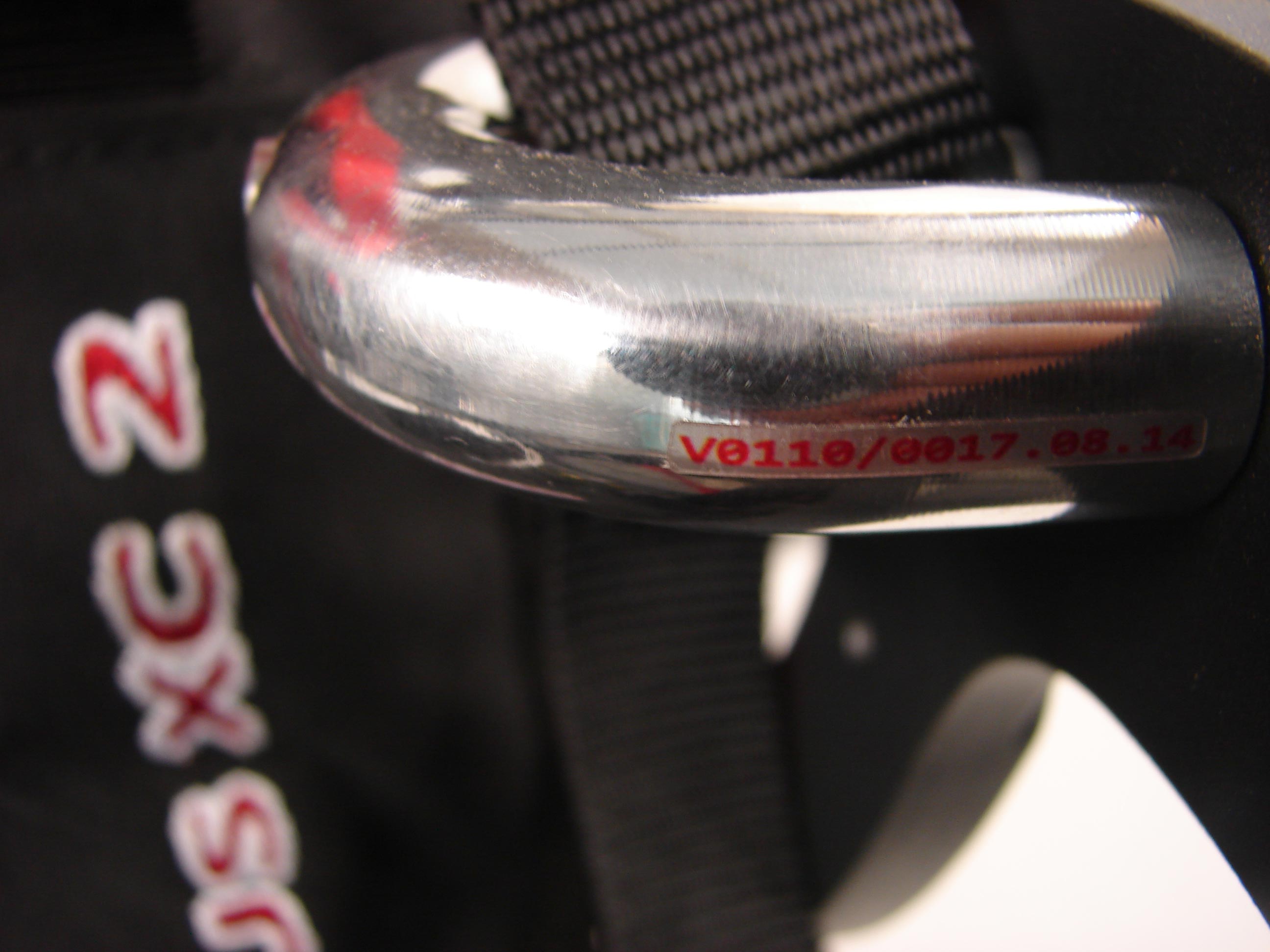

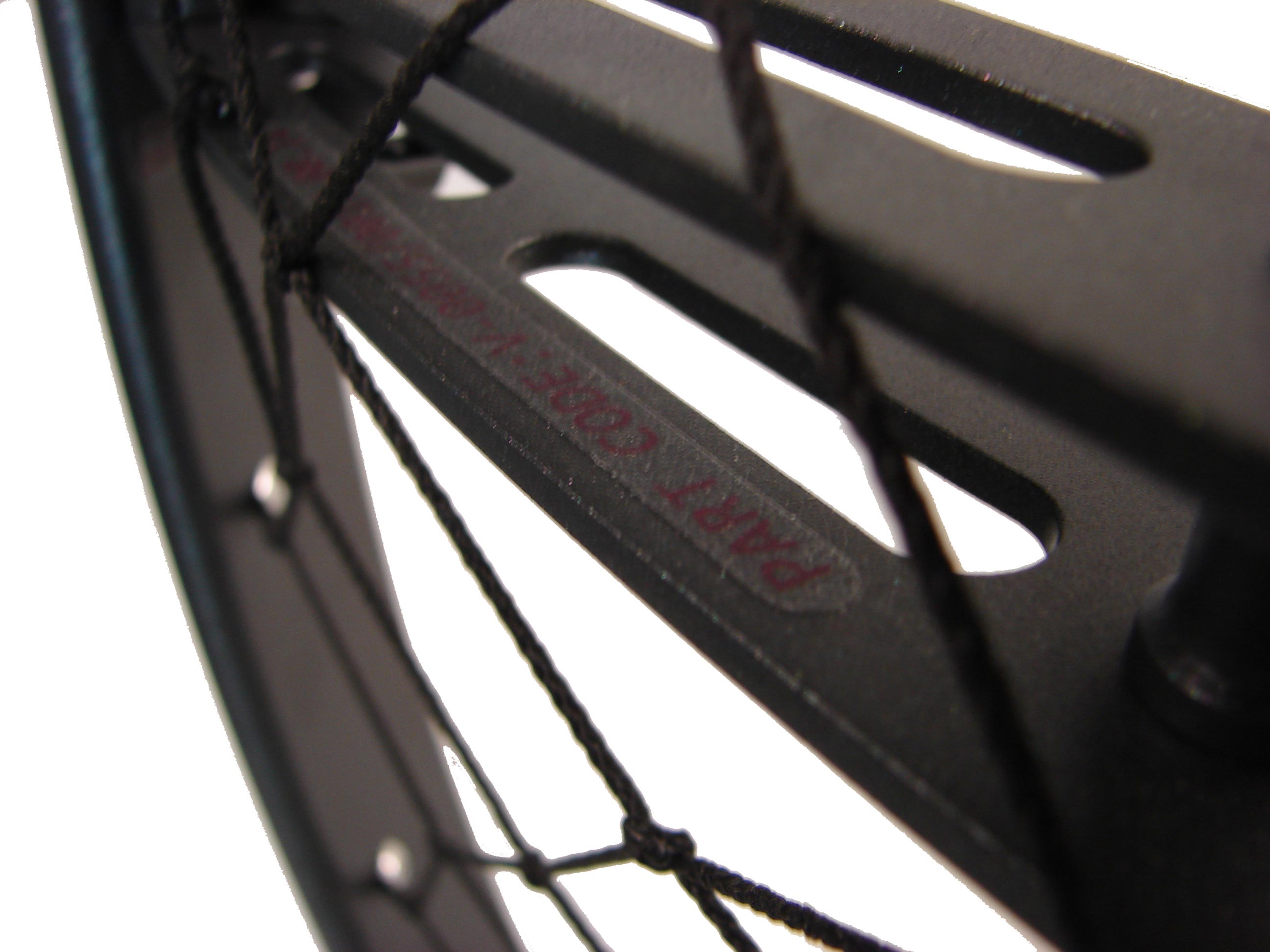

Thanks to weldless technology the product is easily and fully repairable - every detail or part could be replaced without using special equipment or specialised help. Every details is marked with product code.

Paramotor - Weldless technology

Paramotor - Weldless technology

Paramotor - Weldless technology

Paramotor - Weldless technology

Paramotor - Weldless technology
